Question Help! Front Diff & Rear Gearcase Data Wanted!

If anyone, with any model rzr, has their front diff or rear gearcase apart, could you please count the ring & pinion gear teeth in the front diff, or any of the gears in the rear gear case? I'm trying to update the gear master sheet i made to get correct and confirmed updated final drive ratios (see thread: Gear Reduction Master Sheet ) I have alot of the rear gearcases done from OEM parts diagrams, but would like confirmation of a few... especially the 6A,6B,7A,7B gears (picture label below), and info on ones that aren't listed in the diagrams... but like i say, any info on any model helps for reference, just let me know the year and specific model of your machine please.

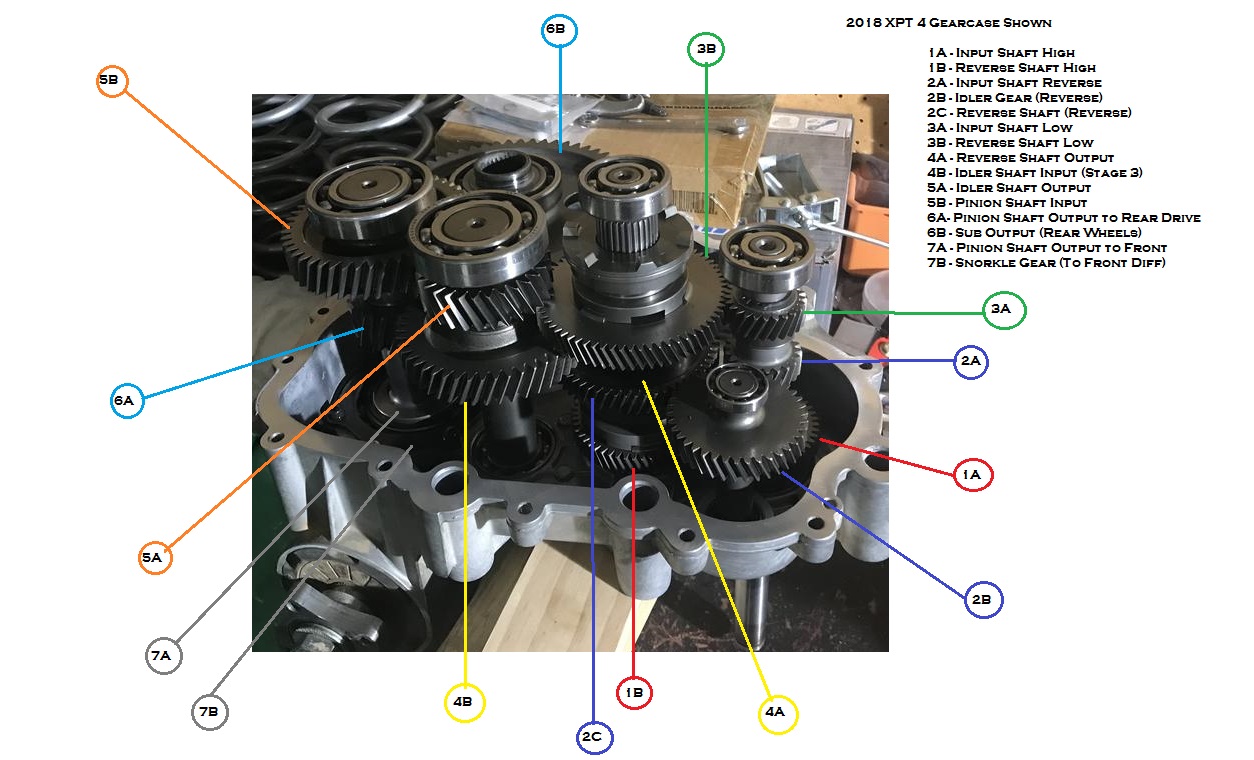

Picture below is of my gear labels for the rear gear case... we'll call the pinion gear in the front 8A, and the ring gear 8B for these purposes..

Thanks in advance!
