Picture of the oil drain plug location

Anyone a good quality picture of the location of the oil drain plug on the motor(not the sump).

I have heard of people draining the wrong plug!

Thanks
rcmark is offline   Reply With Quote
Sponsored Links
RZRForums.net is the premier Polaris RZR Forum on the internet. Registered Users do not see these ads. Please Register - It's Free!
Old May 27th, 2012, 07:28 PM   #2
Feedback Score: 0 reviews

redrzrrider's Avatar

First Name: Butch
My RZR: 2012 LE
Member #17841
Join Date: Aug 2010
Location: Washburn Wisconsin
Posts: 650
View redrzrrider's Photo Gallery(0)
Re: Picture of the oil drain plug location

Quote: Originally Posted by rcmark View Post
Anyone a good quality picture of the location of the oil drain plug on the motor(not the sump).

I have heard of people draining the wrong plug!

Thanks
I don't have a photo but it's the one left of center looking from the back forward (under the motor). And the motor plug takes an allen wrench! The transmision takes a socket. I dropped my tranny oil twice before I got it right!

I DIDN'T NOTICE IT WAS THE XP THREAD......SORRY!

Last edited by redrzrrider; May 27th, 2012 at 07:39 PM. Reason: Because I'm brain dead! Rough weekend!
redrzrrider is offline   Reply With Quote
Old May 27th, 2012, 07:30 PM   #3
King of crash!
Premium Member
Feedback Score: 9 reviews

johnnycat8's Avatar

First Name: john
My RZR: 2nd gen...red
Member #787
Join Date: Dec 2007
Location: roseville calif.
Posts: 31,935
Garage
View johnnycat8's Photo Gallery(0) Send a message via Yahoo to johnnycat8
Re: Picture of the oil drain plug location

On xp remeber trans is all the way back eng close to seats and it's Alan not bolt
__________________
link for crow dog's site!!! www.utvguide.net


running makin trax afco shocks and springs
johnnycat8 is offline   Reply With Quote
Old May 27th, 2012, 07:36 PM   #4
Feedback Score: 0 reviews

redrzrrider's Avatar

First Name: Butch
My RZR: 2012 LE
Member #17841
Join Date: Aug 2010
Location: Washburn Wisconsin
Posts: 650
View redrzrrider's Photo Gallery(0)
Re: Picture of the oil drain plug location

Quote: Originally Posted by johnnycat8 View Post
On xp remeber trans is all the way back eng close to seats and it's Alan not bolt
$HIT...I didn't know he was asking about an XP! I didn't notice the XP Thread, sorry, rough weekend, kind of brain dead!
redrzrrider is offline   Reply With Quote
Old May 27th, 2012, 08:37 PM   #5
Feedback Score: 0 reviews

VodooRZR225's Avatar

First Name: James
My RZR: 2012 900XP Limited Edtion
Member #38029
Join Date: Mar 2012
Location: Clinton,LA
Posts: 60
Garage
View VodooRZR225's Photo Gallery(0)
Re: Picture of the oil drain plug location

So the trans drain is an allen and the engine oil is a bolt for the XP?
__________________
29.5" Outlaw 2's
4000 lb. Viper Elite
Snorkel Your ATV kit
Highlifter Radius Arms
Highlifter Rear Tow plate
SATV 2"-3" Lift
VodooRZR225 is offline   Reply With Quote
Old May 27th, 2012, 08:58 PM   #6
Feedback Score: 0 reviews

SuavecitoGC's Avatar

First Name: G
My RZR: 2012 XP4
Member #33472
Join Date: Dec 2011
Location: Rio Rancho
Posts: 240
View SuavecitoGC's Photo Gallery(0)
On my XP4 the engine oil drain is an Allen wrench. Under the motor and on the skid plate there is an open whole directly below the nut. Just follow the manuals instructions. Good luck.


Sent from my iPhone using Tapatalk
SuavecitoGC is offline   Reply With Quote
Old June 3rd, 2012, 05:24 PM   #7
Feedback Score: 0 reviews

Ranger RZR S's Avatar

My RZR: 2012 RZR XP 900!!
Member #25327
Join Date: Apr 2011
Location: Benson NC
Posts: 391
View Ranger RZR S's Photo Gallery(0)
Re: Picture of the oil drain plug location

so no pics? and the xp oil is bolt or Allen? i looked at mine quick and i saw a small Allen and a bigger Allen i believe. the smaller one was closer to the front and the larger one is at rear axles almost.

someone clear this up please
Ranger RZR S is offline   Reply With Quote
Old June 3rd, 2012, 06:55 PM   #8
Feedback Score: 0 reviews

cdogorl's Avatar

My RZR: XP 1000
Member #37027
Join Date: Mar 2012
Location: Orlando FL
Posts: 443
View cdogorl's Photo Gallery(0)
Re: Picture of the oil drain plug location

it is on the oil pump not the engine! not a allen.
__________________
2014 1000
OEM roof, Folding front windshield, Vinyl rear window, Highlifter high clearance front a arms and rear radius, ABF front bumper, Clarion marine head unit, SVS speaker pods, 10" Bazooka tube with extra battery, Tender Spring swap, Racer Tech 3" lift, Wild Boar ATV axles, Highlifter snorkel system
cdogorl is offline   Reply With Quote
Old June 3rd, 2012, 08:28 PM   #9
Feedback Score: 0 reviews

VodooRZR225's Avatar

First Name: James
My RZR: 2012 900XP Limited Edtion
Member #38029
Join Date: Mar 2012
Location: Clinton,LA
Posts: 60
Garage
View VodooRZR225's Photo Gallery(0)
Re: Picture of the oil drain plug location

lol...So one guy is saying its an allen located under the engine and another guy is saying its NOT an allen located on pump.I think everyone needs to get on the same page here lol...We are talking about the 900 xp here fellas,can someone chime in and clear this up?
__________________
29.5" Outlaw 2's
4000 lb. Viper Elite
Snorkel Your ATV kit
Highlifter Radius Arms
Highlifter Rear Tow plate
SATV 2"-3" Lift
VodooRZR225 is offline   Reply With Quote
Old June 3rd, 2012, 10:25 PM   #10
Feedback Score: 0 reviews

commanderjjones's Avatar

Member #37005
Join Date: Mar 2012
Posts: 12
View commanderjjones's Photo Gallery(0)
Re: Picture of the oil drain plug location

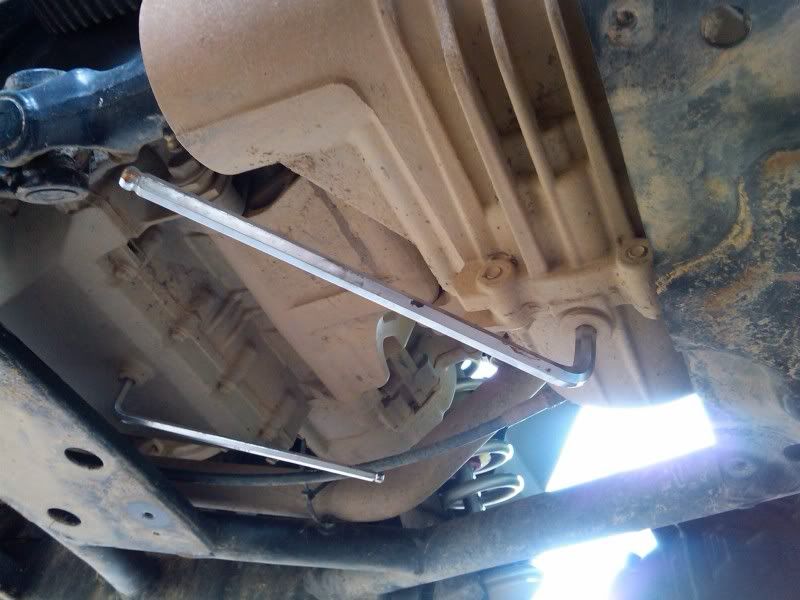

The 8mm allen wrench on the right is in the tranny drain plug....toward the rear of the machine.
