2011 RZR4 Bed Removal & Aluminum Heat Shield

I did this modification before our last trip out. I had some trouble with the bed, it probably took longer to get the bed off than anything else with the project. I took a couple photos, maybe it will help the next guy.

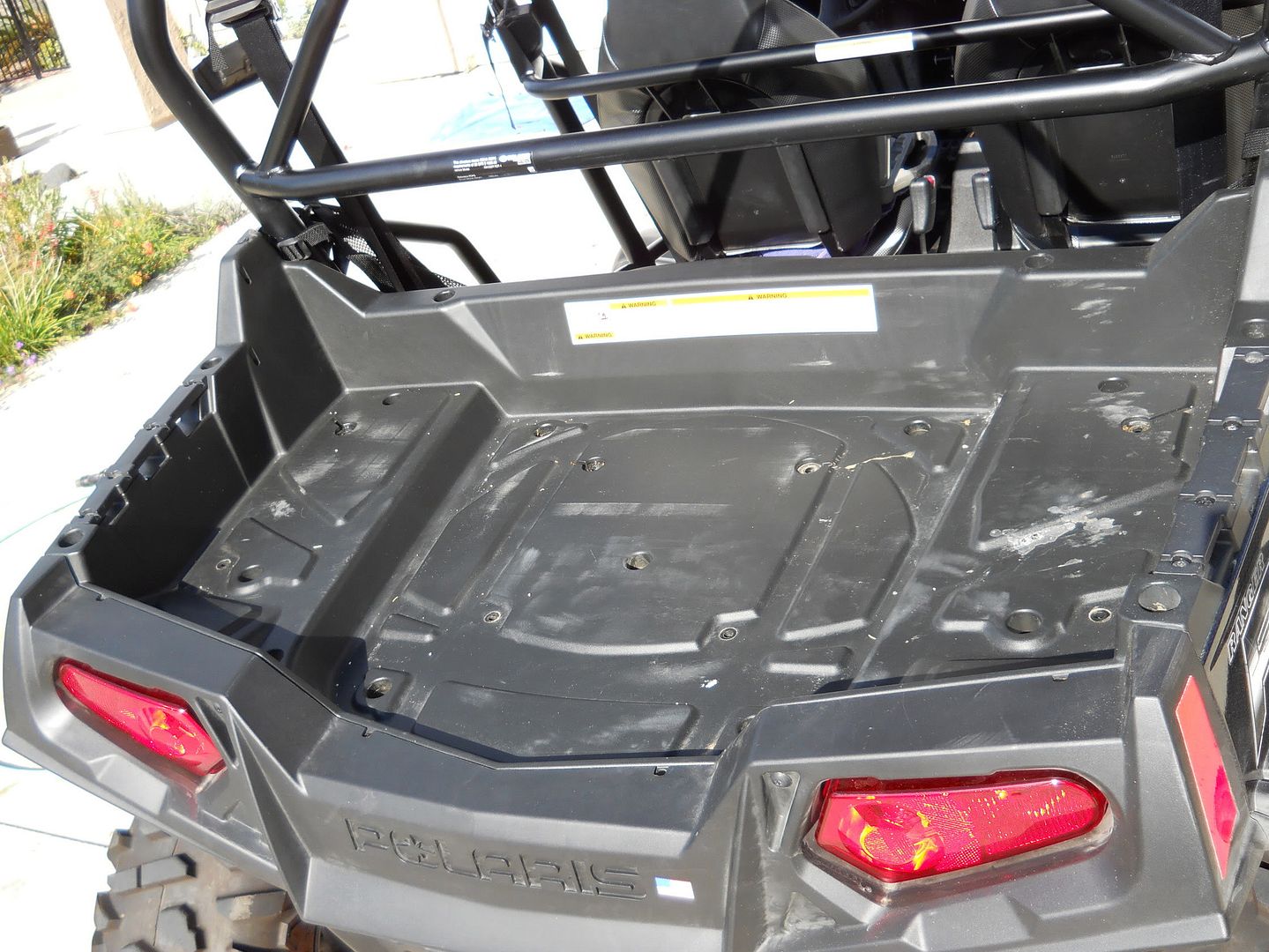

Step 1 - The bed itself has 4 Trox (25) screws and 4 bolts (I forget the size). You do NOT need to remove the Torx screws, they only hold the rails to the bed.

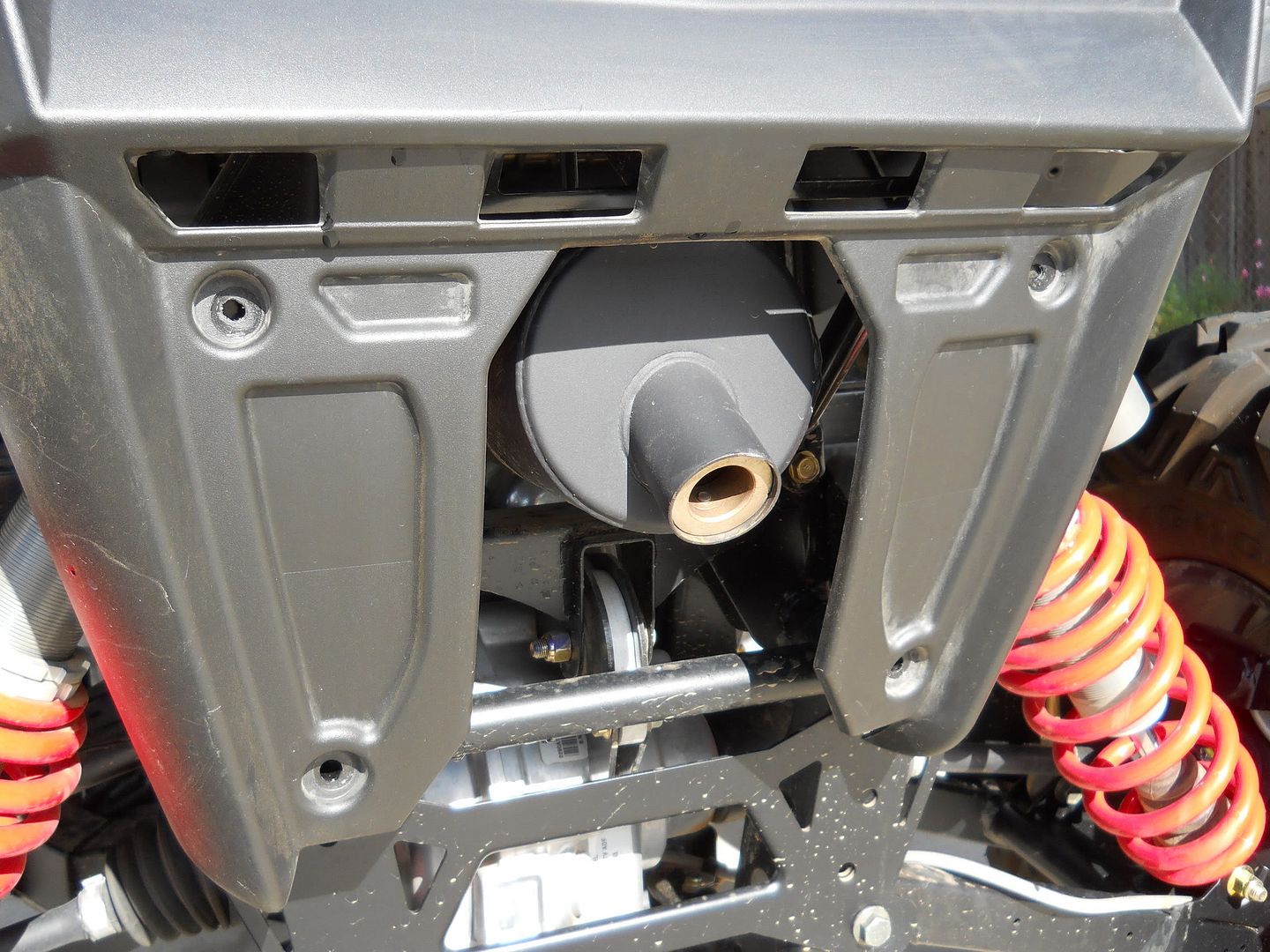

Step 2 - Remove 4 bolts from the rear of the bed. These are different lengths, keep track of all the bolts.

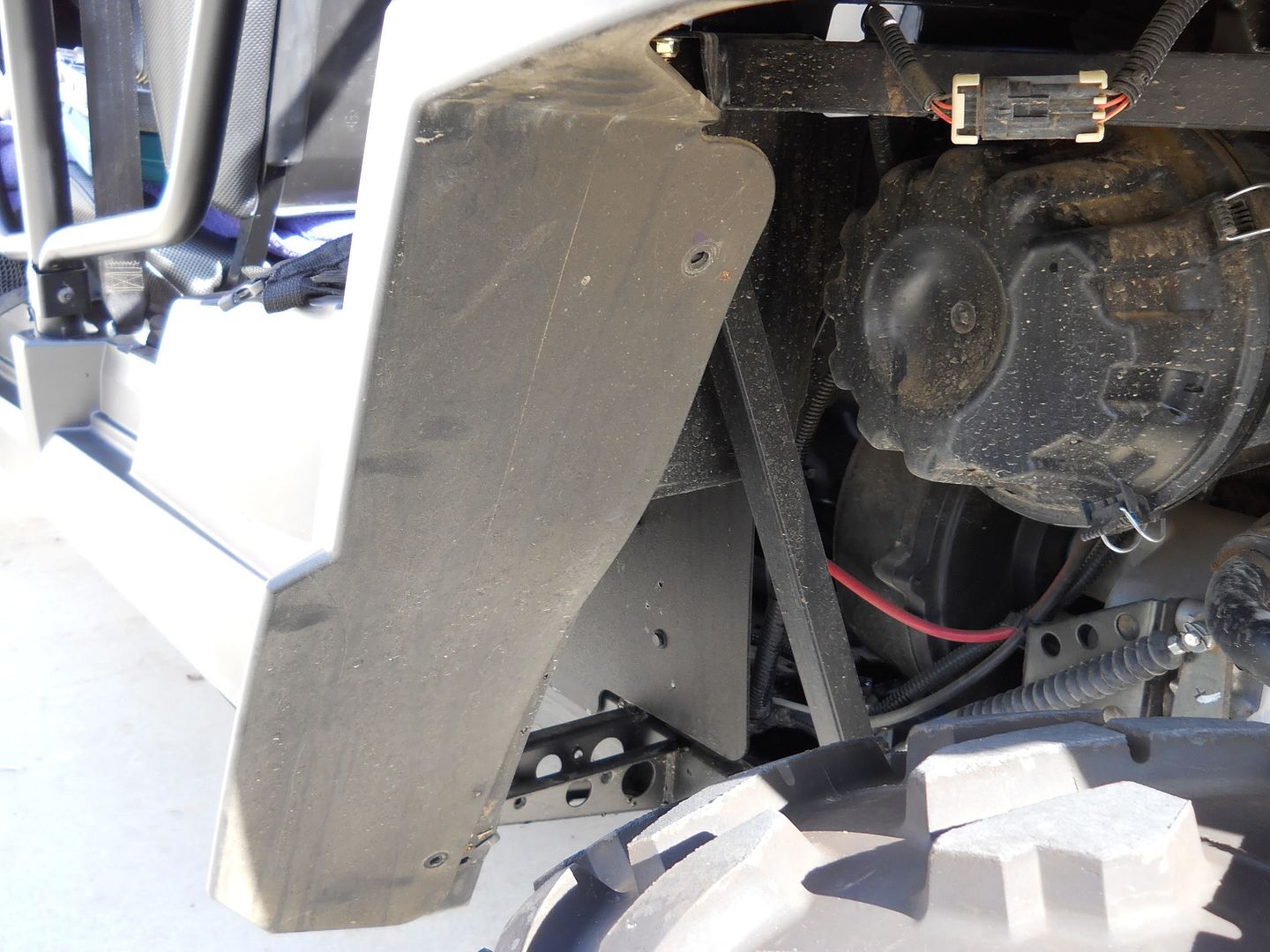

Step 3 - Remove 2 screws from each wheel well.

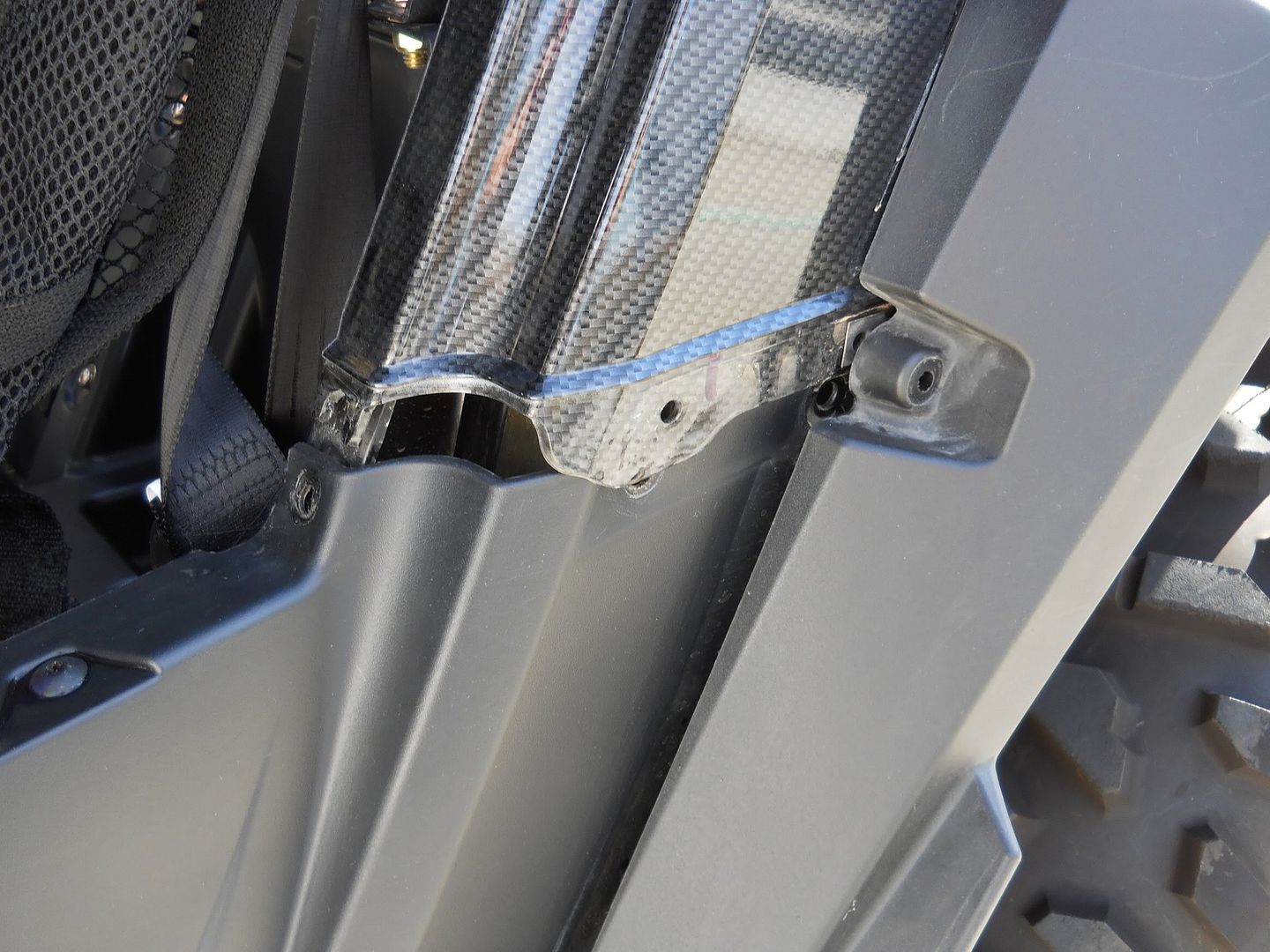

Step 4 - Remove 3 Screws from the fender flair area.

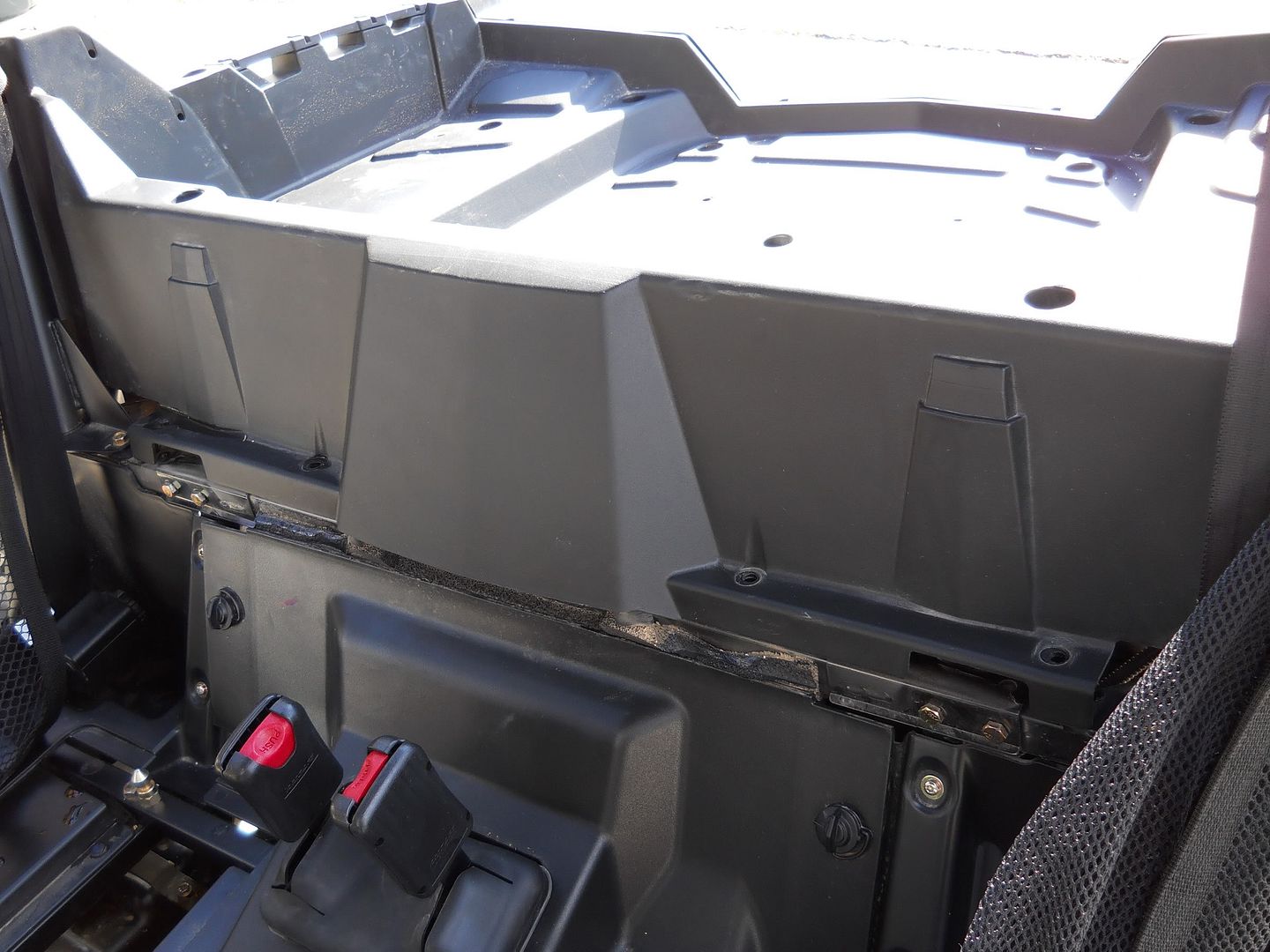

Step 5 - Remove 4 Bolts/Screws from behind the rear seats.

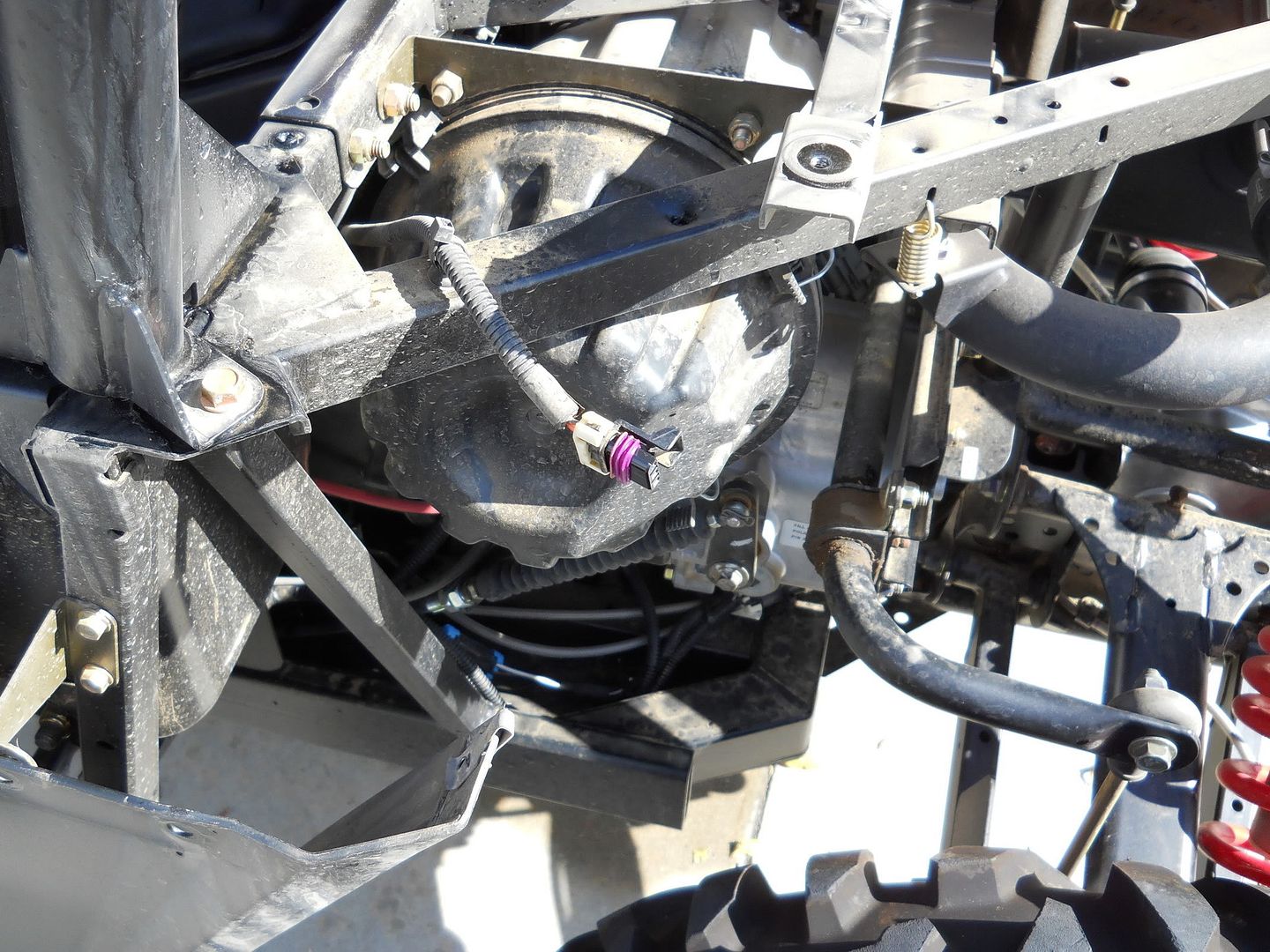

Step 6 - Disconnect the wire for the tail lights (I missed this). It is located on the driver side, right at the roll bar.



Step 7 - Get help if you can. Wiggle the whole thing off the rear of the RZR. I was able to do it by myself, but the fenders kept getting caught.

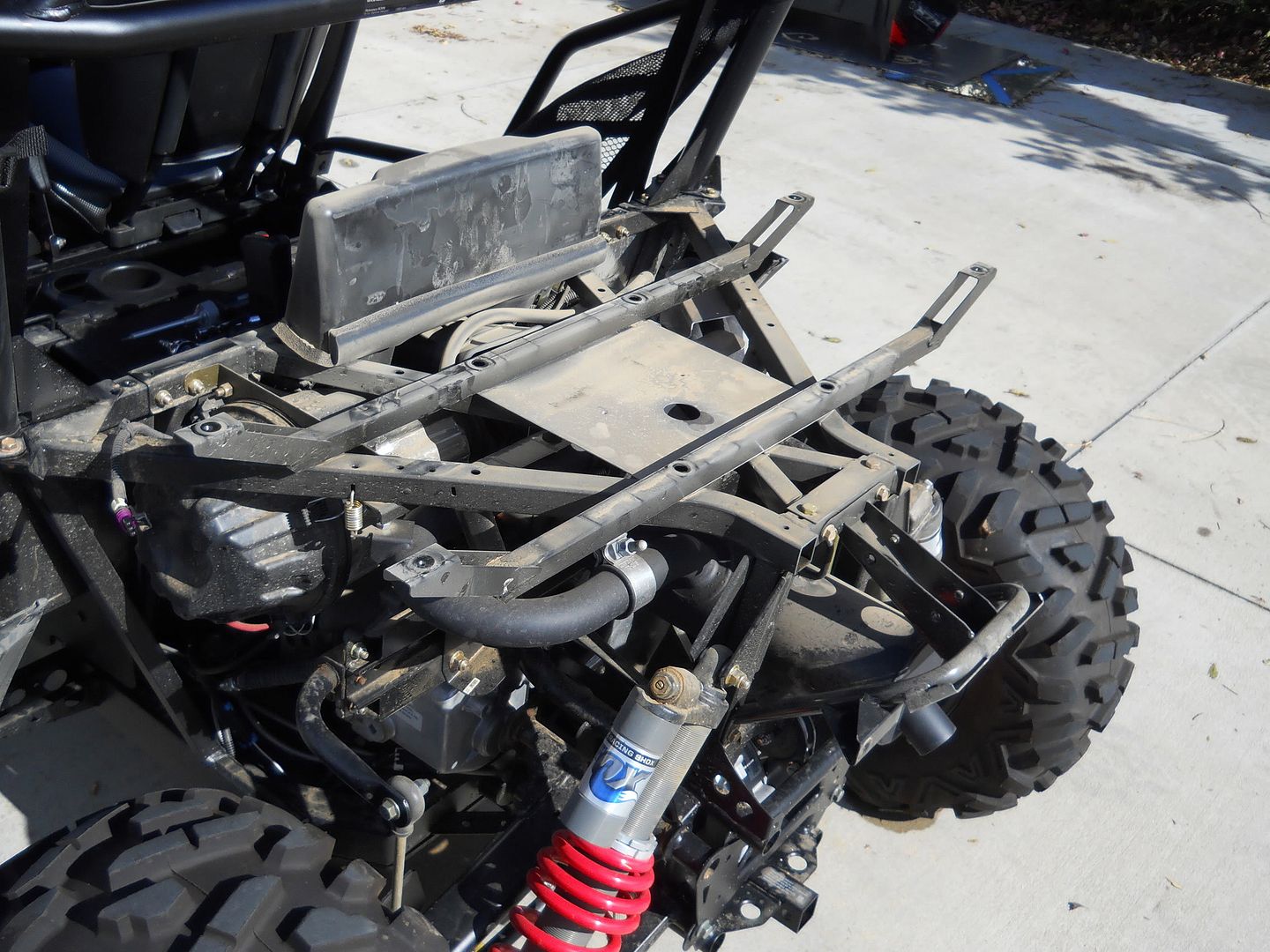

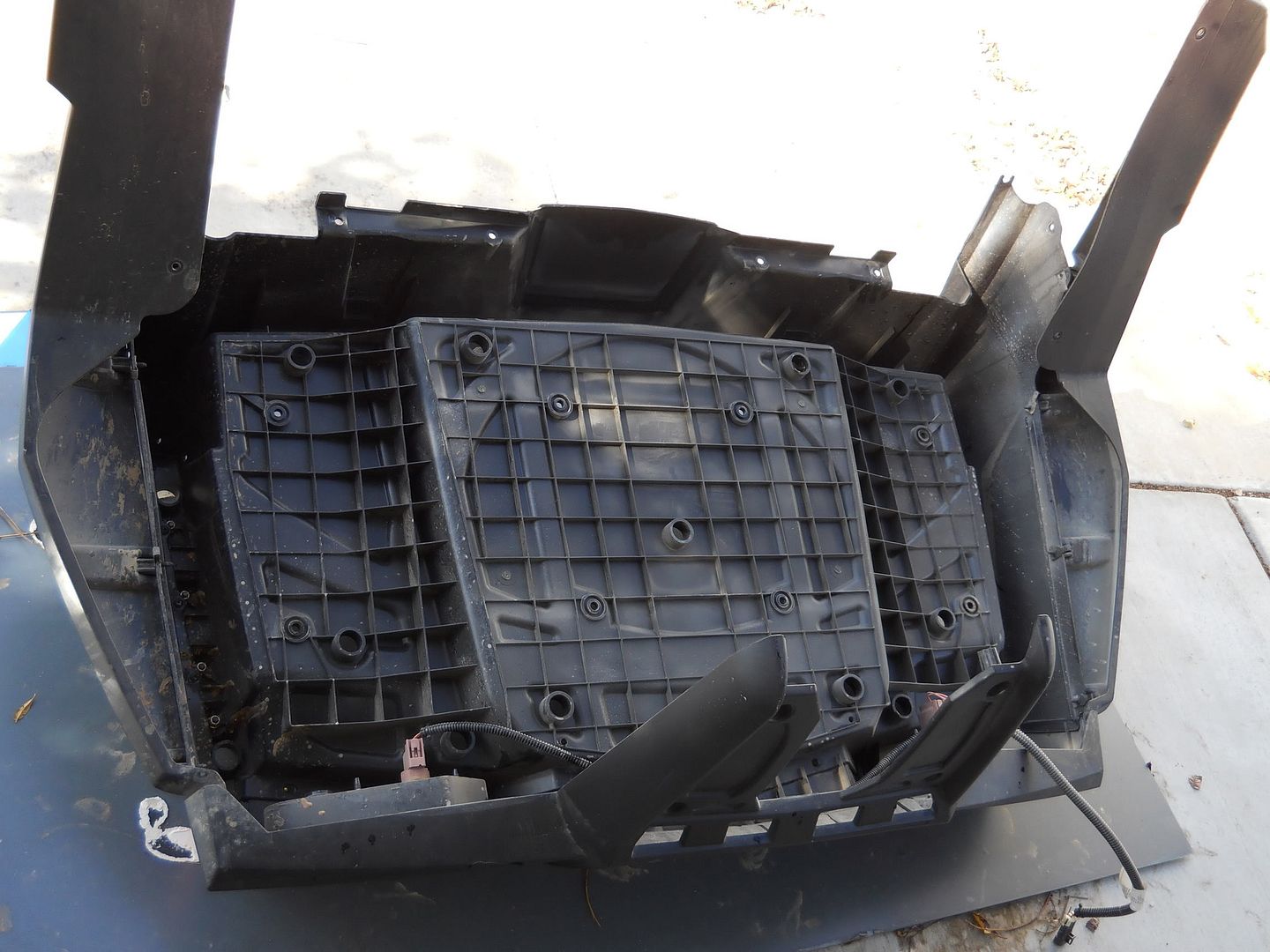

Here is the underside with the bars in place. They will be attached to the bed if you leave in the first 2 Torx Screws. Check out the nice factory heat shield



I found a nice soft place to put it upside down, I didn't want to risk breaking off the fender flairs.

Good Luck. I hope you marked all the bolt/screw locations.
__________________
-Some people play hard to get, I play hard to want
Reply With Quote
Sponsored Links
RZRForums.net is the premier Polaris RZR Forum on the internet. Registered Users do not see these ads. Please Register - It's Free!
  #2
Old January 26th, 2012, 09:59 AM
Nightmare's Avatar
Feedback Score: 0 reviews

Member #18559
Join Date: Sep 2010
Posts: 183
View Nightmare's Photo Gallery(0)
Re: 2011 RZR4 Bed Removal & Aluminum Heat Shield

My $22.55 Heat Shield.

I purchased a 2'x4' Sheet of .063 thickness aluminum from Industrial Metal Supply in Riverside. I went with the middle grade of 'Hardness', I think it was a 3.

I used the Wiss Sheers/Snips I had from a previous project. They are rated to cut 20 guage steel. I'm glad I didn't go any thicker with the aluminum, because I could barely cut this stuff.

Step 1 - Remove the Bed - See Above

Step 2 - I used cardboard to make a template for the shield

Step 3 - Start cutting. I needed to remove more material near the roll cage to get it to lay down flat.

Step 4 - Mark and drill 4 holes for the bed bolts. I used a punch to mark the locations, punching up through the hole from underneath.

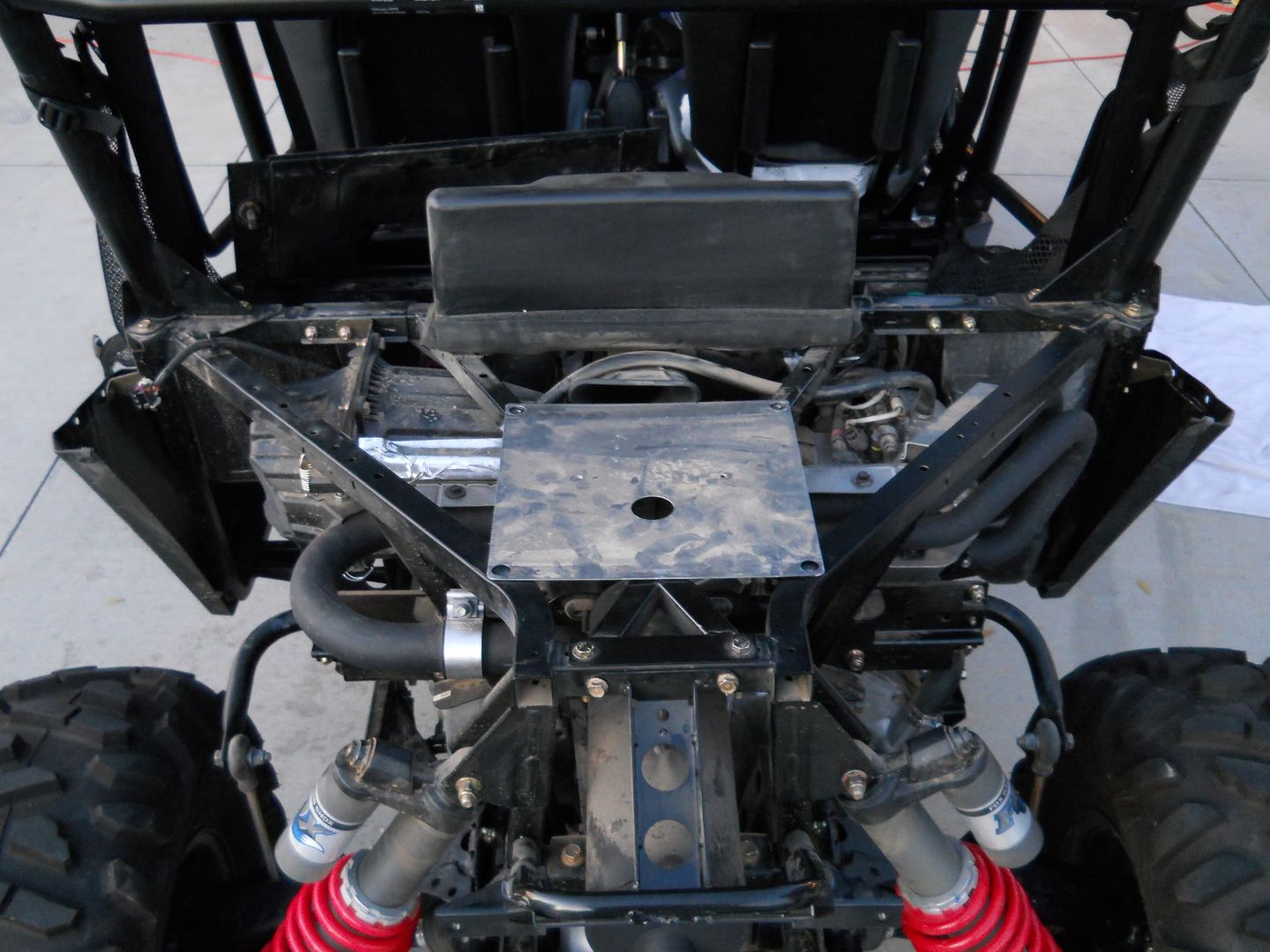

Before

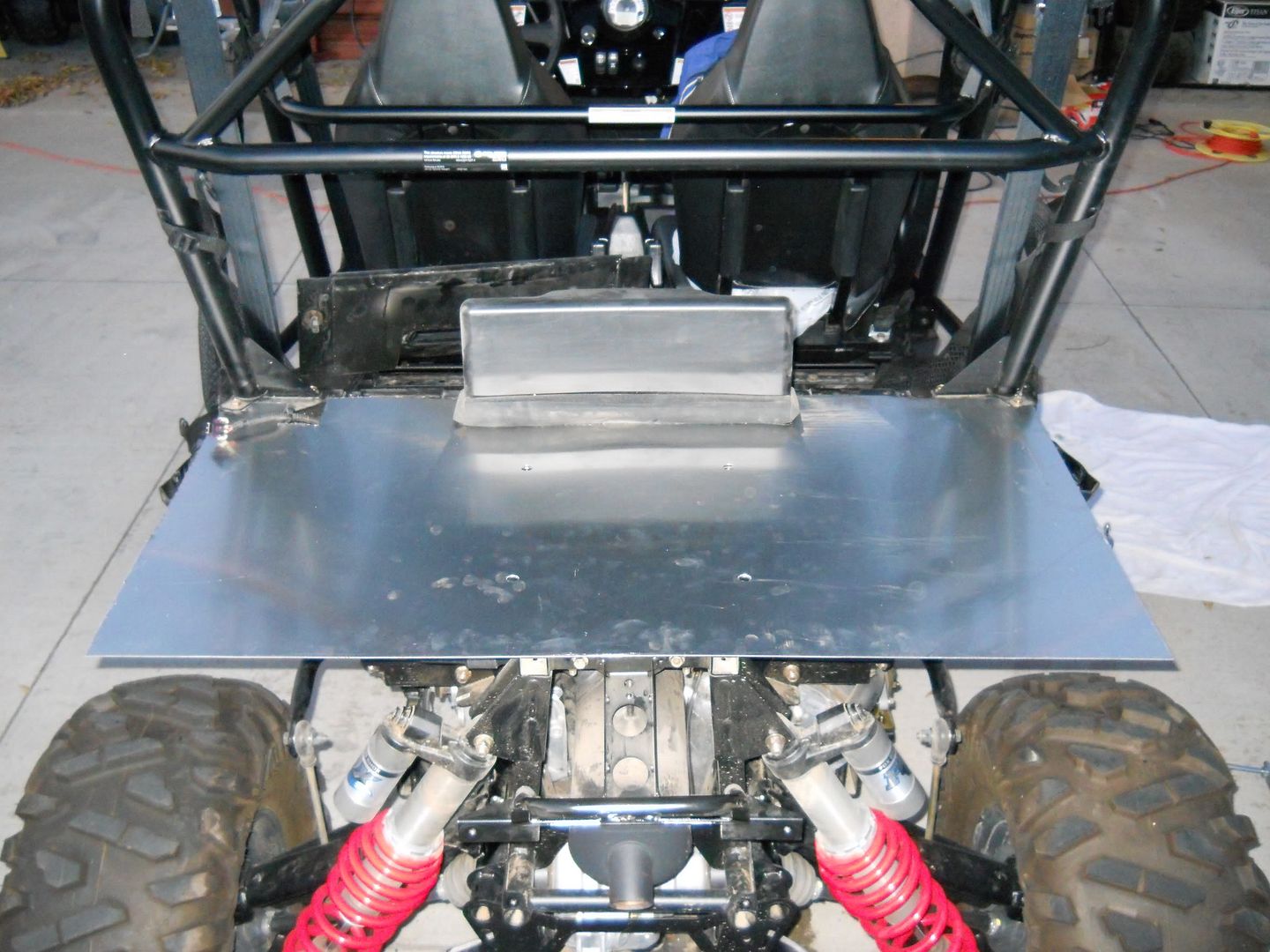

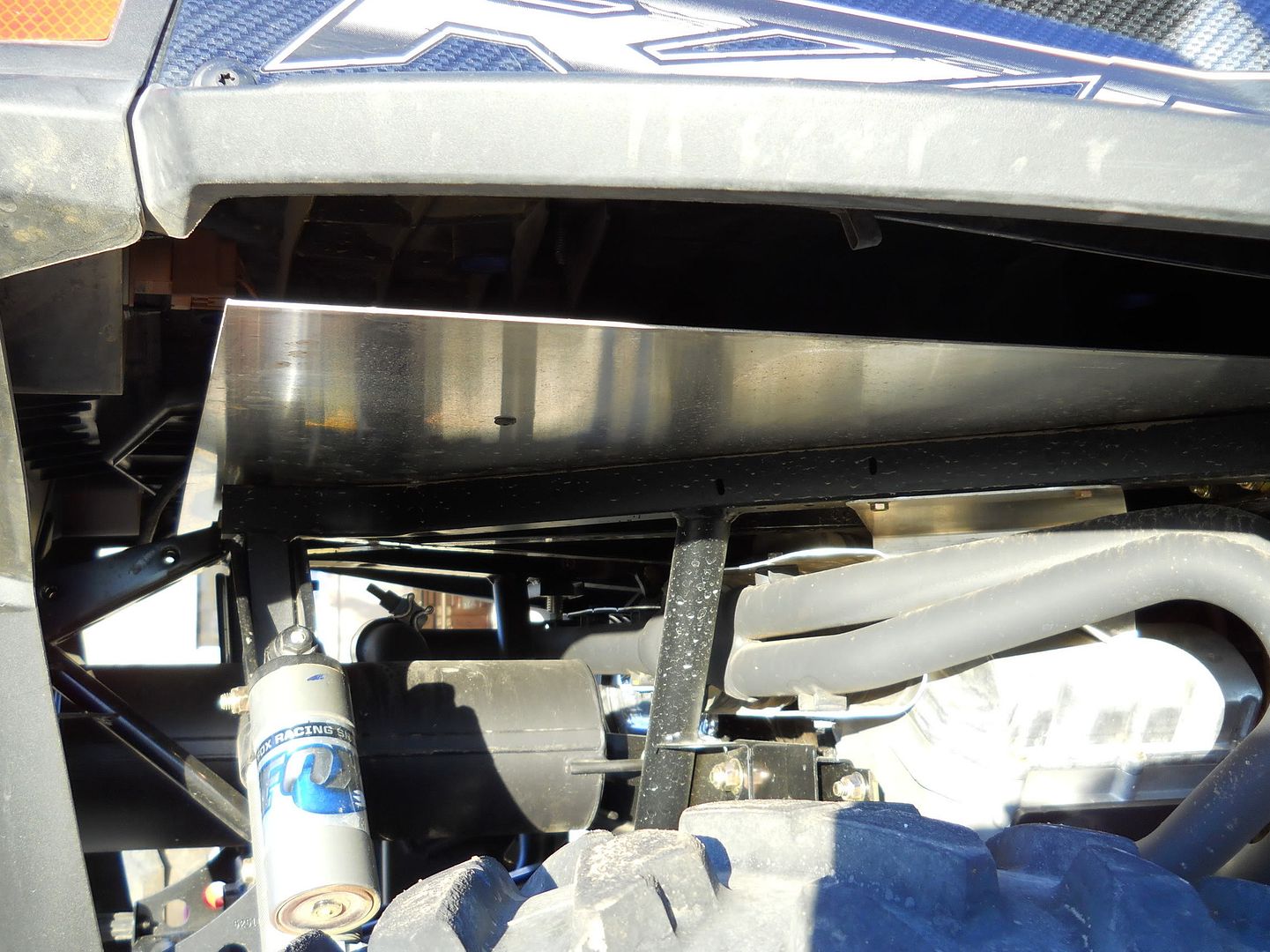

After



I put one extra screw into rear corner of the 1x1 cross bar.

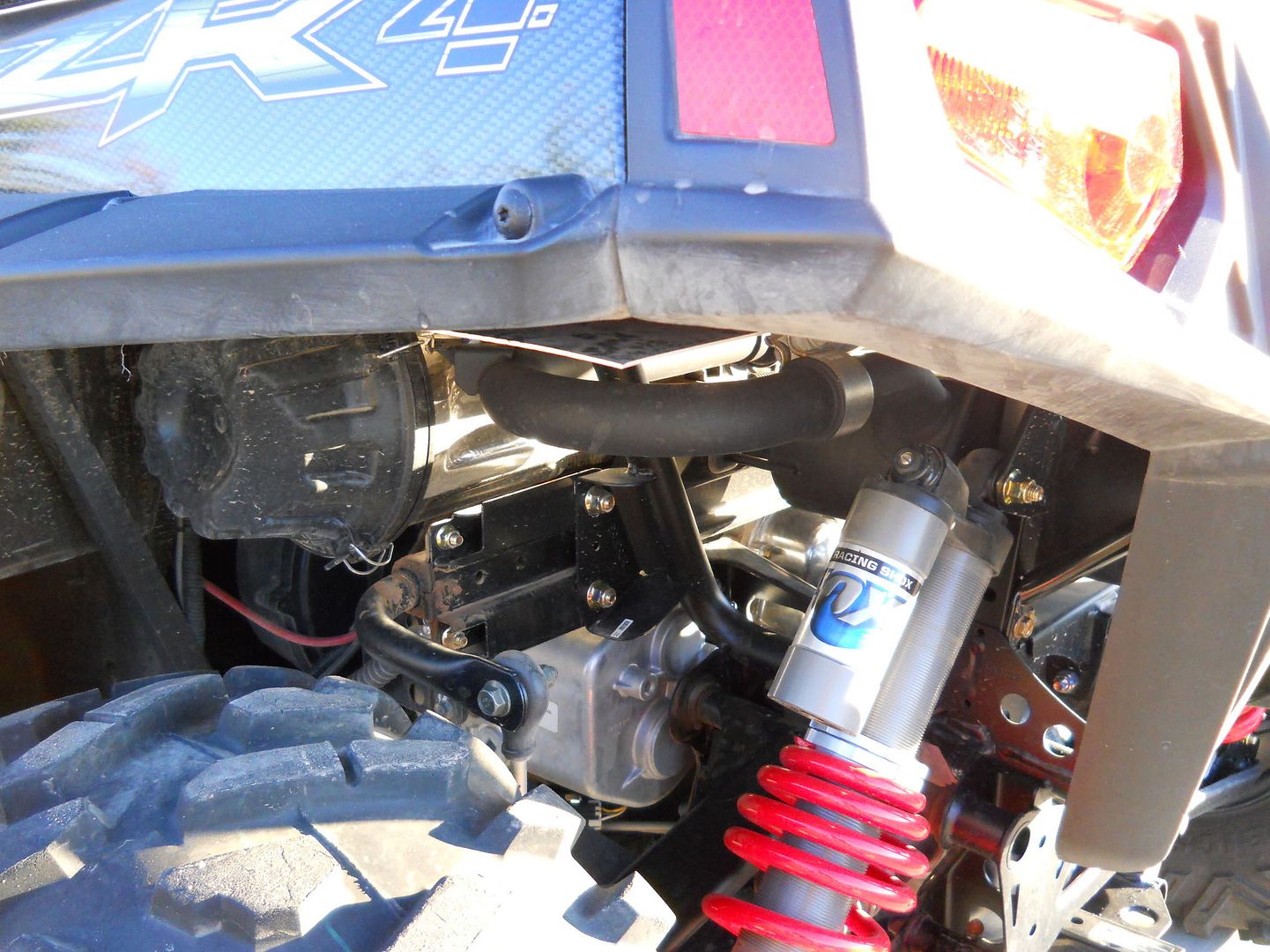

I got lazy and didn't trim my corners off. I might do that later. I think they extra aluminum will disipate more heat and you can barely see it.





UTV Inc makes a very nice pre-cut heat shield. Their heat shield has a 'stamp' in the sheet metal and I bet it is more rigid.
__________________
-Some people play hard to get, I play hard to want

Last edited by Nightmare; January 27th, 2012 at 04:02 PM.
Reply With Quote
  #3
Old January 27th, 2012, 03:41 PM
BugBoyOne's Avatar
Feedback Score: 0 reviews

First Name: Rob
My RZR: 2012 800 & 2013 570
Member #30151
Join Date: Sep 2011
Location: Alberta
Posts: 159
View BugBoyOne's Photo Gallery(0)
Re: 2011 RZR4 Bed Removal & Aluminum Heat Shield

Hey, good job and nice photos. I did the same thing with my std 800, with a little more shaping at the corners. It made a huge difference in heat to the plastic bed. Without it you couldn't keep your hand on the front passenger side of the bed after a ride. With the heat shield the bed doesn't seem to warm up much at all. It's all about dissipation like you mentioned.

I stuck some aluminized pipe wrap to the shield where it sits on the frame members to damp out any buzzy vibration. I also drilled a 1-1/2 hole thru the shield and the bed to get to the rear-most spark plug if necessary without needing to remove the bed (I can barely touch that rear plug from the behind-the-seat access).

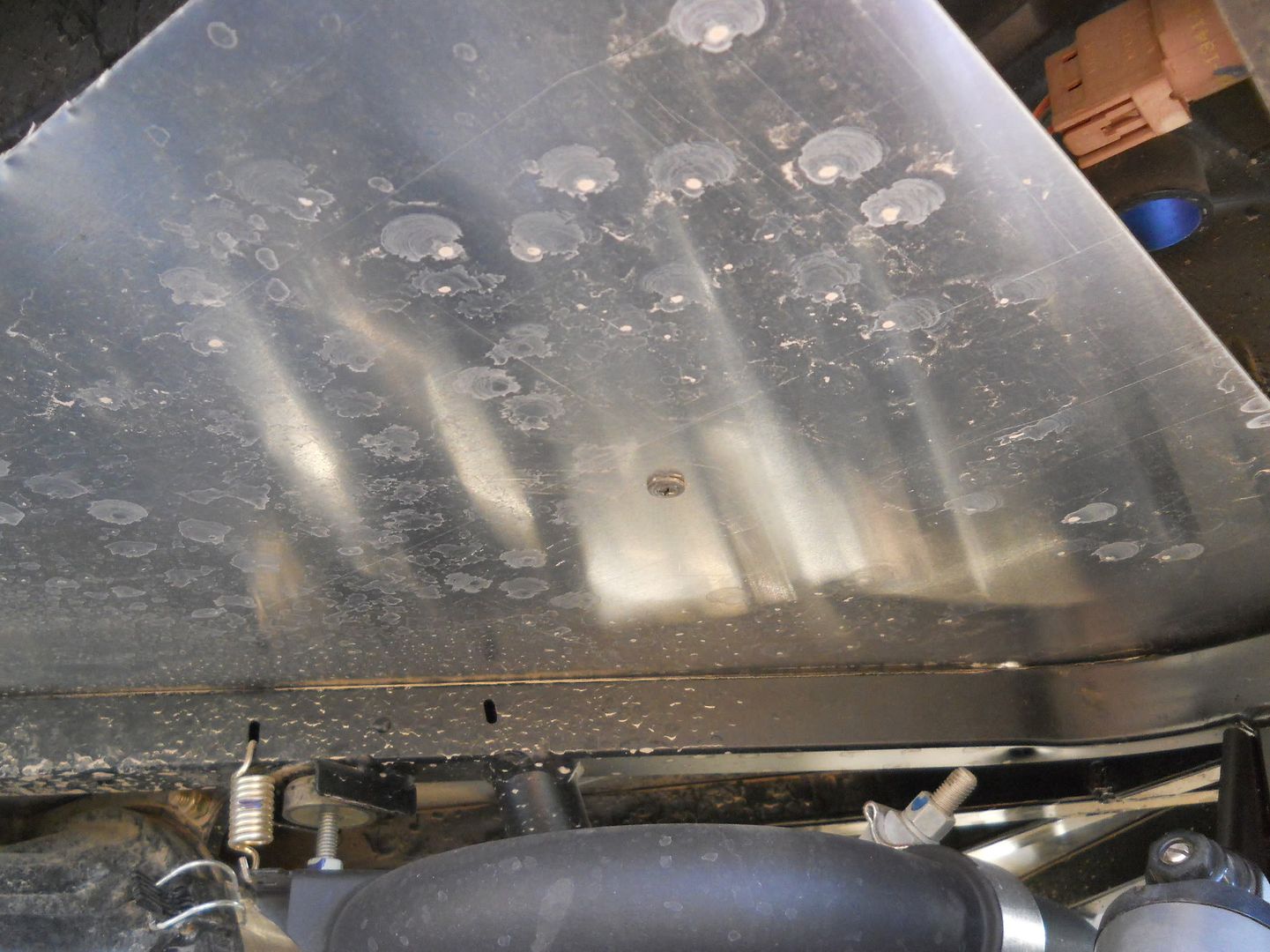

The heat shield is another spot (among many) to collect mud but it's well worth it. That 12" X 12" factory shield is woefully inadequate.
Reply With Quote
  #4
Old January 28th, 2012, 12:30 PM
250rah's Avatar
Feedback Score: 0 reviews

My RZR: 2011 rzr4
Member #30241
Join Date: Sep 2011
Posts: 133
View 250rah's Photo Gallery(0)
Re: 2011 RZR4 Bed Removal & Aluminum Heat Shield

using the heat shield has anyone noticed the engine running hotter or cooler? and I am assuming the heat shield is only for protection of the plastic bed? I am looking at doing the same thing I am just concerned that the larger piece of metal/alumnium would keep more heat on the motor
Reply With Quote
  #5
Old January 28th, 2012, 03:46 PM
BugBoyOne's Avatar
Feedback Score: 0 reviews

First Name: Rob
My RZR: 2012 800 & 2013 570
Member #30151
Join Date: Sep 2011
Location: Alberta
Posts: 159
View BugBoyOne's Photo Gallery(0)
Re: 2011 RZR4 Bed Removal & Aluminum Heat Shield

I normally keep my gauge mode showing engine temp and I haven't noticed a difference either way (this was before winter). Essentially the whole aluminum sheet heats up and because it is large and has air on both sides of it, it just wastes the heat into the moving air. That plastic bed got hot too but it didn't actually conduct heat away like aluminum would (remember, good electrical conductor = good heat conductor, plastic = insulator = poor heat conductor).

Now I have heard that those who snorkle their machines may see a temperature increase. The belt drive air outlet, which blows across the top of the engine, under the bed, can make a difference with cooling.
Reply With Quote
  #6
Old February 21st, 2012, 04:59 PM
tanglefoot69's Avatar
Premium Member
Feedback Score: 0 reviews

First Name: Peter
My RZR: 2012 800 RZR Pursuit Camo
Member #32425
Join Date: Nov 2011
Location: Grand Manan N.B.
Posts: 215
Garage
View tanglefoot69's Photo Gallery(5)
Re: 2011 RZR4 Bed Removal & Aluminum Heat Shield

Nice pics man!!! I was just looking through my shop manual to see how to get mine off without taking out unnecessary screws and now i know.
__________________
2012 Sportsman 850XP LE EPS,F/R Deluxe Brushguards,Polaris 2500lb winch,Garmin Etrex 20 GPS.
Reply With Quote
  #7
Old February 21st, 2012, 05:15 PM
Nightmare's Avatar
Feedback Score: 0 reviews

Member #18559
Join Date: Sep 2010
Posts: 183
View Nightmare's Photo Gallery(0)
Re: 2011 RZR4 Bed Removal & Aluminum Heat Shield

Thanks. There are a lot of screws back there and it can be hard to tell where to start/stop
__________________
-Some people play hard to get, I play hard to want
Reply With Quote
  #8
Old February 21st, 2012, 07:44 PM
RzrTheRoof's Avatar
Feedback Score: 11 reviews

My RZR: 2009 LE
Member #7974
Join Date: May 2009
Location: Pennsylvania
Posts: 995
View RzrTheRoof's Photo Gallery(0)
Re: 2011 RZR4 Bed Removal & Aluminum Heat Shield

I've often considered this modification. Is there any increased noise/rattling with a larger shield? Or is the install fairly solid?
Reply With Quote
  #9
Old February 22nd, 2012, 11:14 AM
Trashpicker's Avatar
Premium Member
Premium Member
Feedback Score: 0 reviews

First Name: Trashpicker
My RZR: 2011 RZR LE Nuclear Sunset Orange
Member #21858
Join Date: Jan 2011
Location: Edgewood, NM
Posts: 349
Garage
View Trashpicker's Photo Gallery(11)
Re: 2011 RZR4 Bed Removal & Aluminum Heat Shield

Nice job. I did a similar thing to mine after my cooler had a melt down in the bed! I also rolled some beads in it to make it more ridgid.While I had the bed off I also made a heatshield/gas tank shield of the same material.Later, Trashpicker

__________________
Trashpicker
2011 Polaris RZR Limited Edition 50",
Nuclear Sunset Orange, 5" cage chop, 2" Lift kit
Front and rear brushguard bumpers, 5 point harness's
14"x8" GMZ bead lock rims, 28"x10"x14" GBC Mongrel Radial tires, Walker Evans shocks, PRP GT Seats
Warn winch, Lighted Tribal Whip,Homebuilt doors

Last edited by Trashpicker; February 22nd, 2012 at 11:26 AM.
Reply With Quote
  #10
Old February 22nd, 2012, 11:28 AM
Nightmare's Avatar
Feedback Score: 0 reviews

Member #18559
Join Date: Sep 2010
Posts: 183
View Nightmare's Photo Gallery(0)
Re: 2011 RZR4 Bed Removal & Aluminum Heat Shield

I don't notice any more noise from back there. If you cut off the excess (like Trash and the UTV Inc) there would be even less aluminum to bang around.

I'll probably trim mine some more in the future, but I was short on time during the install and my hand was tired of cutting the aluminum
__________________
-Some people play hard to get, I play hard to want
Reply With Quote
  #11
Old June 26th, 2012, 12:51 PM
JDG's Avatar
JDG JDG is offline
Feedback Score: 0 reviews

Member #17212
Join Date: Jul 2010
Location: Flatgap, KY
Posts: 160
View JDG's Photo Gallery(0)
Re: 2011 RZR4 Bed Removal & Aluminum Heat Shield

found out

Last edited by JDG; June 26th, 2012 at 01:20 PM.
Reply With Quote
  #12
Old June 27th, 2012, 06:31 PM
medik418's Avatar
Premium Member
Premium Member
Feedback Score: 1 reviews

First Name: Tom
My RZR: 2009 RZR
Member #14212
Join Date: Mar 2010
Location: Texas Panhandle
Posts: 3,532
Garage
View medik418's Photo Gallery(0)
Texas Re: 2011 RZR4 Bed Removal & Aluminum Heat Shield

Quote: Originally Posted by tanglefoot69 View Post
Nice pics man!!! I was just looking through my shop manual to see how to get mine off without taking out unnecessary screws and now i know.
One thing I started doing since I take my bed off a lot more than I should is leave the four outermost screws that are located in the bed and just remove the four in the center. That way the cross braces are still lined up with the bolt holes in the frame when you go to put it back on.
__________________

2009 standard rzr, TSI Turbo with CP pistons, P/W crank by Crankworks, Team/MCX wide ratio clutch,+5 lt kit with 1.5"offset from SATV, Polaris hardtop, Fox Podiums, Promark 3000XT winch, RZR4 exhaust, UMP intake, ProArmor doors, Progressive springs from Makin trax, DFR fuel controller, Polaris "S" flares, HID 35 W headlight conversion.
2013 XP4 Walker Evans edition, PA doors, axle armor on all 4.
With enough thrust, pigs fly just fine!
Reply With Quote
  #13
Old January 14th, 2014, 07:00 PM
mack180out's Avatar
Feedback Score: 0 reviews

First Name: Mack
My RZR: 2011 RZR 800 3" lift,1/4" skid plate,Danaldson air cleaner,safari rack,4 point harnesses
Member #63572
Join Date: Dec 2013
Location: Peoria AZ
Posts: 21
Garage
View mack180out's Photo Gallery(0)
Re: 2011 RZR4 Bed Removal & Aluminum Heat Shield

Use a skillsaw to cut your aluminum. I've cut 1/4" plate with mine and it cut like butter,just ware saftey glasses
