sxs rack (on top of pickup)

I have two sxs's, so I built this rack to haul one on top of the pickup. Also great for an out of town trip if its just me (gets around Cali's 55 mph speed limit when towing). I bolted two 2x2"x.120" tubes in the bed, that each have two kickers going down to the bed. The 2x2's also stab into the stock ladder rack pockets, so the weight is shared by the kickers and the bed. Plus, by tying into the ladder rack pockets, a lot less steel is needed in the bed. I then used 1x3x.065" tubing and 1 1/4 .120 wall angle and built two separate racks (left and right). Each weights a little over a hundred pounds, so I can lift them up onto the bed by myself. Four bolts hold each one on, and it takes about 5-10 minutes to put them on or take them off. On the 1x3" I asked for .083 wall, but they gave me .065". But the .065" is working out fine, and keeps the weight down. It fits my wife's rzr4, my Mav, and it'll fit a sxs up to 76" wide so it should be future proofed! I also used some 1 3/4 .095" round tubing where all the tires rest.
glamisfan is offline   Reply With Quote
Sponsored Links
RZRForums.net is the premier Polaris RZR Forum on the internet. Registered Users do not see these ads. Please Register - It's Free!
Old February 10th, 2013, 09:17 PM   #2
Super Moderator
Premium Member
Feedback Score: 18 reviews

GIFF-TURBO's Avatar

First Name: Gary
Member #3946
Join Date: Aug 2008
Posts: 12,776
View GIFF-TURBO's Photo Gallery(146)
Re: sxs rack (on top of pickup)

WOW! nice, that must be exciting loading and unloading
GIFF-TURBO is offline   Reply With Quote
Old February 10th, 2013, 09:24 PM   #3
Premium Member
Premium Member
Feedback Score: 0 reviews

Carhauler's Avatar

First Name: Lance
My RZR: Voodoo Blue 900 XP
Member #46696
Join Date: Oct 2012
Location: Mckee, KY
Posts: 909
View Carhauler's Photo Gallery(0)
Looks good. I'm assuming you got air ride suspension.


Sent from my iPhone 5 using Tapatalk
__________________
Emp front bumper, Polaris cage extension, 2.5" lift, 30X10 Bighorns on 14" Polaris Sixxr wheels , SSV, Yoshimura RS-4 exhaust, 30" and 10" LED light bars, UTV Inc Blue switch panel, Pro Armor doors and harnesses, Polaris Sport Roof, Tilt windshield and rear window, Warn 3.0XT, UTV inc Nerf bars, visionx tantrum blue led rock lights/strobes, lock and ride storage, UTV Giant center seat, Alba Stage 2, bikeman header, power commander w/autotune, chopped cage, badazz wrap, dual odyssey batts, Racertech Dual Rates, DMC Double down intake, UTV inc hitch, Garmin Montana 650T
Carhauler is offline   Reply With Quote
Old February 10th, 2013, 10:09 PM   #4
Feedback Score: 0 reviews

glamisfan's Avatar

Member #21731
Join Date: Jan 2011
Posts: 142
Garage
View glamisfan's Photo Gallery(0)
The rear of the truck is five linked and big rig bagged.
glamisfan is offline   Reply With Quote
Old February 11th, 2013, 02:49 PM   #5
Premium Member
Premium Member
Feedback Score: 0 reviews

Chris-4's Avatar

First Name: Chris
My RZR: Busa 4
Member #33446
Join Date: Dec 2011
Location: Salisbury, NC
Posts: 147
View Chris-4's Photo Gallery(0)
Re: sxs rack (on top of pickup)

Im glad you dont have a patent .... I might copy that !
Chris-4 is offline   Reply With Quote
Old October 8th, 2014, 06:49 AM   #6
Feedback Score: 0 reviews

glamisfan's Avatar

Member #21731
Join Date: Jan 2011
Posts: 142
Garage
View glamisfan's Photo Gallery(0)
sxs rack (on top of pickup)

Bump for a fella looking for one of these. Bolts right into a short bed SD. $1800 if anyone wants it.

Last edited by glamisfan; October 8th, 2014 at 06:54 AM.
glamisfan is offline   Reply With Quote
Old October 8th, 2014, 08:26 AM   #7
Premium Member
Premium Member
Feedback Score: 1 reviews

sndnsno's Avatar

First Name: Ken
My RZR: 2008 Rzr
Member #25844
Join Date: May 2011
Location: Mesa, AZ
Posts: 670
View sndnsno's Photo Gallery(0)
Re: sxs rack (on top of pickup)

Nice--how does the RZR handle the ride? Any problems with the wind stress on the roof?
sndnsno is offline   Reply With Quote
Old October 8th, 2014, 09:06 AM   #8
unregistered user
Feedback Score: 0 reviews

Razor800's Avatar

First Name: Skip
My RZR: RZR800
Member #67956
Join Date: Apr 2014
Location: North Idaho
Posts: 50
Garage
View Razor800's Photo Gallery(0)
Re: sxs rack (on top of pickup)

Great Fab work, wish that I had the skills..
You have every right to be proud of that setup
I would have been more than happy to have one like yours as it's A-one and much better than my feeble attempts to build one myself.

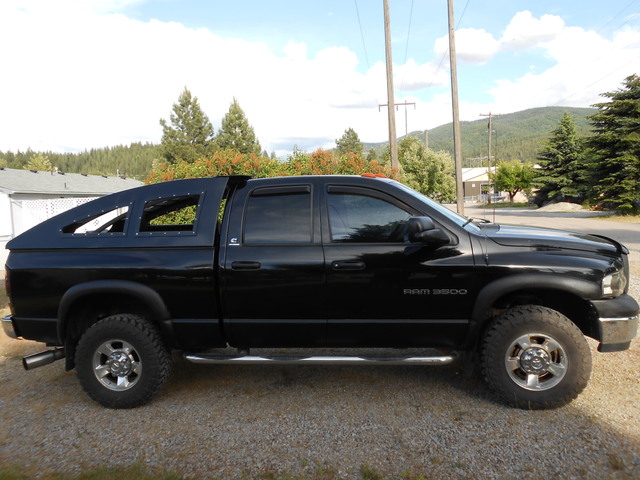

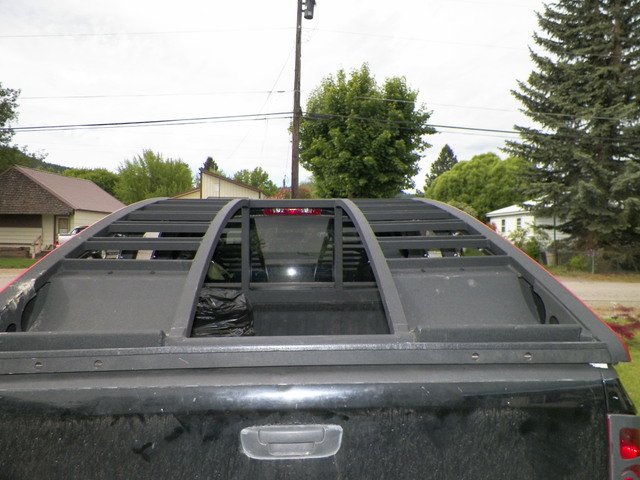

Mine was custom built (not by me) and is made out of aluminum. It is easily removed by two "young" men.



__________________
'nuff said
Razor800 is offline   Reply With Quote
Old October 8th, 2014, 09:50 AM   #9
Feedback Score: 0 reviews

glamisfan's Avatar

Member #21731
Join Date: Jan 2011
Posts: 142
Garage
View glamisfan's Photo Gallery(0)
Re: sxs rack (on top of pickup)

I've only had the RZR 4 with the factory plastic roof up there once and it did fine. If you're worried about the roof then after you tie the whole thing down, I would just throw a strap over the roof in the cage and snug it down a little bit just on the front of the roof and that should alleviate any worries. And that custom aluminum one is a very nice, unique way to do it. I never would have thought of making one like that!
glamisfan is offline   Reply With Quote
Old October 8th, 2014, 10:00 AM   #10
Premium Member
Premium Member
Feedback Score: 0 reviews

scicon's Avatar

First Name: Tom
My RZR: XP 1000
Member #10517
Join Date: Oct 2009
Location: Agua Dulce, Ca.
Posts: 267
View scicon's Photo Gallery(0)
Re: sxs rack (on top of pickup)

Good luck to you guys.
scicon is offline   Reply With Quote
Old November 4th, 2014, 03:18 AM   #11
Feedback Score: 0 reviews

Booser's Avatar

Member #47570
Join Date: Nov 2012
Posts: 27
Garage
View Booser's Photo Gallery(0)
Re: sxs rack (on top of pickup)

A pic of my buddies set up.
Attached Thumbnails
Click image for larger version

Name:	2014102295180354.jpg
Views:	139
Size:	235.9 KB
ID:	117673
Booser is offline   Reply With Quote
Old November 4th, 2014, 08:52 PM   #12
Feedback Score: 0 reviews

2thedarkside's Avatar

Member #13865
Join Date: Mar 2010
Posts: 64
View 2thedarkside's Photo Gallery(0)
Re: sxs rack (on top of pickup)

Here's mine!!!
Attached Images

2thedarkside is offline   Reply With Quote
Old November 4th, 2014, 09:56 PM   #13
Feedback Score: 0 reviews

Jahlin89's Avatar

First Name: J
My RZR: 15 RZR 1k4
Member #44816
Join Date: Sep 2012
Location: Las Vegas, NV
Posts: 174
Garage
View Jahlin89's Photo Gallery(0)
Re: sxs rack (on top of pickup)

Quote: Originally Posted by Booser View Post
A pic of my buddies set up.

How high does this make your vehicle?
Jahlin89 is online now   Reply With Quote
Old November 10th, 2014, 01:03 AM   #14
Feedback Score: 0 reviews

Booser's Avatar

Member #47570
Join Date: Nov 2012
Posts: 27
Garage
View Booser's Photo Gallery(0)
Re: sxs rack (on top of pickup)

Quote: Originally Posted by Jahlin89 View Post
Quote: Originally Posted by Booser View Post
A pic of my buddies set up.

How high does this make your vehicle?
13 ft. Same as the trailer with the axels flippped
Booser is offline   Reply With Quote
