Winch Wiring Help

i bought and installed a 4k winch off ebay, when the wires are connected to the battery it burns the ends of the hot wire, as if it were grounded on the other end. i informed the company, they sent a new solenoid and still has the same problem. everything is wired as it should be. any suggestions? thanks

Last edited by autorevolution; March 18th, 2011 at 05:37 PM.
autorevolution is offline   Reply With Quote
Sponsored Links
RZRForums.net is the premier Polaris RZR Forum on the internet. Registered Users do not see these ads. Please Register - It's Free!
Old March 18th, 2011, 01:19 PM   #2
Feedback Score: 0 reviews

redrzrrider's Avatar

First Name: Butch
My RZR: 2012 LE
Member #17841
Join Date: Aug 2010
Location: Washburn Wisconsin
Posts: 650
View redrzrrider's Photo Gallery(0)
Re: Winch Wiring Help

Quote: Originally Posted by autorevolution View Post
i bought and installed a cheap 4k winch off ebay, when the wires are connected to the battery it burns the ends of the hot wire, as if it were grounded on the other end. i informed the company, they sent a new solenoid and still has the same problem. everything is wired as it should be. any suggestions? thanks
You may need to give a little more detail to us if you want help....I can only suggest this "It's not wired as it should be" !!! You have something on the wrong leg. What kind of winch is it?
redrzrrider is offline   Reply With Quote
Old March 18th, 2011, 02:42 PM   #3
Follow me! I dare u!
Feedback Score: 0 reviews

Wrongway's Avatar

First Name: Dubby
My RZR: 2014 RZR XP1000 / 2009 RZR S
Member #5563
Join Date: Dec 2008
Location: Kennewick, WA
Posts: 766
Garage
View Wrongway's Photo Gallery(1)
Re: Winch Wiring Help

neeeeeed moooooore infoooooo.... Schematic of your layout. writing it down may even help you find your issue.
__________________
WW
Wrongway is offline   Reply With Quote
Old March 18th, 2011, 02:52 PM   #4
Feedback Score: 0 reviews

autorevolution's Avatar

Member #23124
Join Date: Feb 2011
Posts: 34
Garage
View autorevolution's Photo Gallery(0)
Re: Winch Wiring Help

I thought the same thing but i've looked over and over it and everything is wired as it should be, the solenoid is color coded as are the wires that connect to it, and where they connect to the winch motor. The winch brand is xtreme, other than that it didn't come with a schematic, like i said everything is color coded so it's pretty fool-proof. My guess is now that it's got to be in the motor itself... thanks
autorevolution is offline   Reply With Quote
Old March 18th, 2011, 02:57 PM   #5
Premium Member
Premium Member Premium Member
Feedback Score: 2 reviews

Magicmantx's Avatar

First Name: Bruce
My RZR: 2014 Titanium XP1K
Member #20584
Join Date: Dec 2010
Location: Alvin,Tx
Posts: 7,192
Garage
View Magicmantx's Photo Gallery(120)
Re: Winch Wiring Help

I am assuming you probably have the venom winch. Same as me because I had the same problem when I wired it per the directions sent. I don't remember which wires were backwards on the schematic but there are two that have to switched. I believe it was the blue and? Look at it closely . I had to scratch my head a few times but finally figured it out. If you can't figure it out let me know and I'll gom out and take a look at mine.
__________________
2014 Titanium XP1K,Chrome 14" MSA Diesel Wheels,Polaris Roof,Polaris 1/2 Windshield,Twisted Stitch Seats,UTVinc. Harnesses,Custom Steering Wheel, Custom Overhead Stereo with 1000W Phoenix Gold AMP and 4-6x9 Polk Speakers with JVC Bluetooth ,30"WV Offroadgear Lightbar,BrunoMotorsports OX Front Bumper,Pawltector Brake
:TX
Brunomspts@yahoo.com
Laissez les bons temps rouler !
RIP Texasrzrrider
Magicmantx is offline   Reply With Quote
Old March 18th, 2011, 02:59 PM   #6
Premium Member
Premium Member Premium Member
Feedback Score: 2 reviews

Magicmantx's Avatar

First Name: Bruce
My RZR: 2014 Titanium XP1K
Member #20584
Join Date: Dec 2010
Location: Alvin,Tx
Posts: 7,192
Garage
View Magicmantx's Photo Gallery(120)
Re: Winch Wiring Help

I was thinking the same thing when I had the same problem but can pretty much bet it is wired wrong. you are trying to connect a ground to hot.
__________________
2014 Titanium XP1K,Chrome 14" MSA Diesel Wheels,Polaris Roof,Polaris 1/2 Windshield,Twisted Stitch Seats,UTVinc. Harnesses,Custom Steering Wheel, Custom Overhead Stereo with 1000W Phoenix Gold AMP and 4-6x9 Polk Speakers with JVC Bluetooth ,30"WV Offroadgear Lightbar,BrunoMotorsports OX Front Bumper,Pawltector Brake
:TX
Brunomspts@yahoo.com
Laissez les bons temps rouler !
RIP Texasrzrrider
Magicmantx is offline   Reply With Quote
Old March 18th, 2011, 03:00 PM   #7
Feedback Score: 0 reviews

autorevolution's Avatar

Member #23124
Join Date: Feb 2011
Posts: 34
Garage
View autorevolution's Photo Gallery(0)
Re: Winch Wiring Help

actually yes, i've seen them online and they look identical. if you don't mind that'd be awesome of you. thats the way it acts but like i said, it's wired as the diagram shows and i've even tried swapping the battery leads but still no luck. THANKS ALOT!
autorevolution is offline   Reply With Quote
Old March 18th, 2011, 03:23 PM   #8
Premium Member
Premium Member Premium Member
Feedback Score: 2 reviews

Magicmantx's Avatar

First Name: Bruce
My RZR: 2014 Titanium XP1K
Member #20584
Join Date: Dec 2010
Location: Alvin,Tx
Posts: 7,192
Garage
View Magicmantx's Photo Gallery(120)
Re: Winch Wiring Help

I'll go look right now give me a few minutes and see if I can help ya
__________________
2014 Titanium XP1K,Chrome 14" MSA Diesel Wheels,Polaris Roof,Polaris 1/2 Windshield,Twisted Stitch Seats,UTVinc. Harnesses,Custom Steering Wheel, Custom Overhead Stereo with 1000W Phoenix Gold AMP and 4-6x9 Polk Speakers with JVC Bluetooth ,30"WV Offroadgear Lightbar,BrunoMotorsports OX Front Bumper,Pawltector Brake
:TX
Brunomspts@yahoo.com
Laissez les bons temps rouler !
RIP Texasrzrrider
Magicmantx is offline   Reply With Quote
Old March 18th, 2011, 03:32 PM   #9
Premium Member
Premium Member Premium Member
Feedback Score: 2 reviews

Magicmantx's Avatar

First Name: Bruce
My RZR: 2014 Titanium XP1K
Member #20584
Join Date: Dec 2010
Location: Alvin,Tx
Posts: 7,192
Garage
View Magicmantx's Photo Gallery(120)
Re: Winch Wiring Help

ok, If yours is like mine there is a red blue and yellow cable (8 or 10 g) and a few small wires that will only connect one way. The red wire goes where it is supposed to go. The yellow and blue wires need to be switched on the solenoid from how you have them now. That is what was wrong with mine. Hope that helps ler me know.
__________________
2014 Titanium XP1K,Chrome 14" MSA Diesel Wheels,Polaris Roof,Polaris 1/2 Windshield,Twisted Stitch Seats,UTVinc. Harnesses,Custom Steering Wheel, Custom Overhead Stereo with 1000W Phoenix Gold AMP and 4-6x9 Polk Speakers with JVC Bluetooth ,30"WV Offroadgear Lightbar,BrunoMotorsports OX Front Bumper,Pawltector Brake
:TX
Brunomspts@yahoo.com
Laissez les bons temps rouler !
RIP Texasrzrrider
Magicmantx is offline   Reply With Quote
Old March 18th, 2011, 03:50 PM   #10
Feedback Score: 0 reviews

autorevolution's Avatar

Member #23124
Join Date: Feb 2011
Posts: 34
Garage
View autorevolution's Photo Gallery(0)
Re: Winch Wiring Help

ok great, will try it as soon as i get home
autorevolution is offline   Reply With Quote
Old March 18th, 2011, 04:47 PM   #11
Feedback Score: 0 reviews

autorevolution's Avatar

Member #23124
Join Date: Feb 2011
Posts: 34
Garage
View autorevolution's Photo Gallery(0)
Re: Winch Wiring Help

tried that and still no fix. i did run the winch straight to the battery though and it well spool IN but when you switch polarity it will not spool OUT...
autorevolution is offline   Reply With Quote
Old March 18th, 2011, 04:55 PM   #12
Feedback Score: 0 reviews

autorevolution's Avatar

Member #23124
Join Date: Feb 2011
Posts: 34
Garage
View autorevolution's Photo Gallery(0)
Re: Winch Wiring Help

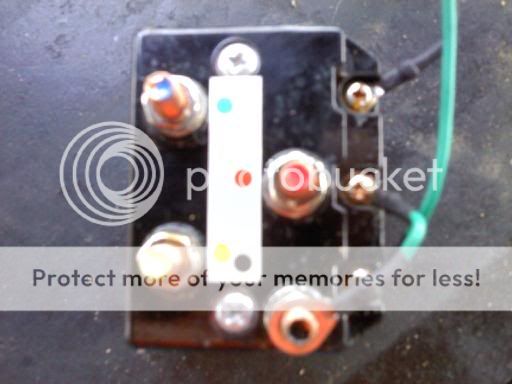

the solenoid before wiring


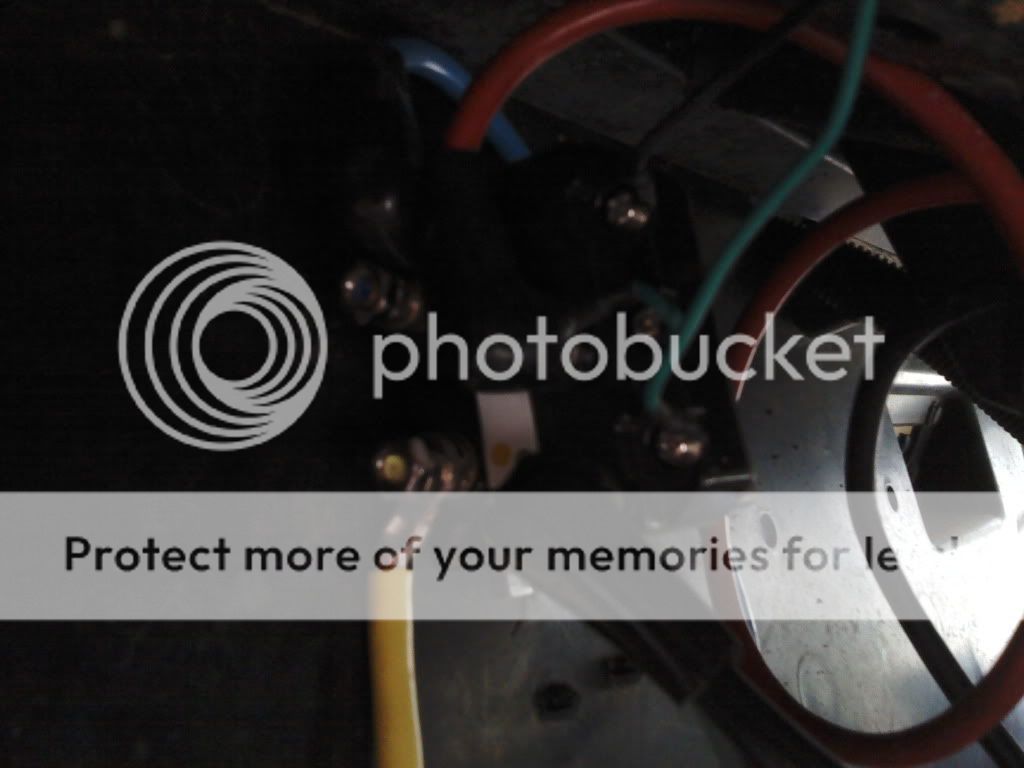

everything wired to the color codes


hot (red) on top of winch, ground (black) on bottom


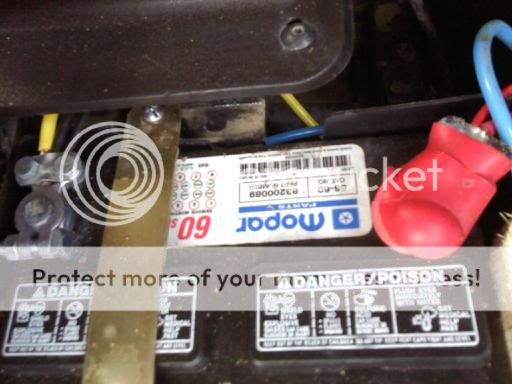

yellow on negative and blue on positive.

Last edited by autorevolution; March 18th, 2011 at 05:02 PM.
autorevolution is offline   Reply With Quote
Old March 18th, 2011, 05:13 PM   #13
Feedback Score: 0 reviews

redrzrrider's Avatar

First Name: Butch
My RZR: 2012 LE
Member #17841
Join Date: Aug 2010
Location: Washburn Wisconsin
Posts: 650
View redrzrrider's Photo Gallery(0)
Re: Winch Wiring Help

Quote: Originally Posted by autorevolution View Post
tried that and still no fix. i did run the winch straight to the battery though and it well spool IN but when you switch polarity it will not spool OUT...
Try disconecting the pos/neg at the battery, then change the 2 leads at the winch and try re-connecting the pos/neg at the battery. See if that does it???
redrzrrider is offline   Reply With Quote
Old March 18th, 2011, 05:28 PM   #14
Feedback Score: 0 reviews

autorevolution's Avatar

Member #23124
Join Date: Feb 2011
Posts: 34
Garage
View autorevolution's Photo Gallery(0)
Re: Winch Wiring Help

thanks for the suggestion but already tried that... but remember, it's not connected to the battery because if i did that it would deffinately fry something
autorevolution is offline   Reply With Quote
Old March 18th, 2011, 07:39 PM   #15
Premium Member
Premium Member Premium Member
Feedback Score: 2 reviews

Magicmantx's Avatar

First Name: Bruce
My RZR: 2014 Titanium XP1K
Member #20584
Join Date: Dec 2010
Location: Alvin,Tx
Posts: 7,192
Garage
View Magicmantx's Photo Gallery(120)
Re: Winch Wiring Help

Ok I went back and looked at mine closely. I have the exact same solenoid as you. Like you I had the same problem I couldnt hook up the hot wire it was a dead short. I had to try trial and error until I figured it out. The color coded decal on the solenoid is WRONG ignore it. Looking at your pic you need to do the following.
The cables on the winch motor are attached to the winch correctly red on top and black on bottom. Moving to the inside to the solenoid. As you have it wired now in the pic you need to swap the red and blue cables. And swap the yellow and blue. working from top to bottom with the small terminals being to your right as you look at the solenoid it will be from top to bottom. Red then moving down blue then black then the lowerst will be the yellow. On the battery connect the blue to positive and yellow to ground. The small wires should be attached with the jumper wire from the small middle post over to the bottom post where the yellow wire will be attached. The small black wire at top is correct as you have it. Lastly the other green wire on the bottom small screw goes to the harness. This is how mine is wired . Took me quite a while to figure this out. Even though we have different brand decals on the winches I bet they are exactly the same .
__________________
2014 Titanium XP1K,Chrome 14" MSA Diesel Wheels,Polaris Roof,Polaris 1/2 Windshield,Twisted Stitch Seats,UTVinc. Harnesses,Custom Steering Wheel, Custom Overhead Stereo with 1000W Phoenix Gold AMP and 4-6x9 Polk Speakers with JVC Bluetooth ,30"WV Offroadgear Lightbar,BrunoMotorsports OX Front Bumper,Pawltector Brake
:TX
Brunomspts@yahoo.com
Laissez les bons temps rouler !
RIP Texasrzrrider
Magicmantx is offline   Reply With Quote
